What is HVAC air balancing? HVAC air balancing is measuring the airflow at every supply register and return, then setting dampers so each room gets the airflow its load calculation calls for. It fine-tunes a sound duct system. It cannot fix ducts that leak or are too small.
Key Takeaways
- ENERGY STAR’s 2025 HVAC Commissioning Checklist sets the room target: within the greater of 20 percent or 25 cfm of design airflow.
- The same checklist calls room balancing “highly recommended” but not required, so a certified new home may never have been balanced.
- A June 2018 DOE review of 44 field reports found low airflow more than 50% of the time in every region studied.
- A typical house loses 20 to 30 percent of duct air to leaks, according to ENERGY STAR; balancing cannot recover it.
- Closing more than 60 percent of registers risks frozen coils and furnace high-limit trips, a 2003 Lawrence Berkeley National Laboratory study found.
- A shut bedroom should sit within 3 Pa of the house under the ENERGY STAR Rater Field Checklist.
What is HVAC air balancing?
HVAC air balancing makes a forced air system deliver the right airflow, in cubic feet per minute (cfm), to each room. A technician compares measured airflow at every register with that room’s design airflow and moves dampers until the two match within a tolerance. When one branch still falls short after balancing, a booster is often proposed; our test of whether an inline duct fan fixes a weak room shows when it helps and when it hides a duct problem.
Design airflow comes from a room by room ACCA Manual J load calculation and duct sizes from ACCA Manual D. When a home has high static pressure or badly routed ductwork, that is a design or repair problem that dampers will not solve.
In commercial buildings the work is called testing, adjusting and balancing (TAB). The UC Davis Western Cooling Efficiency Center names the three main TAB certifying bodies: AABC, NEBB and TABB.
What does an air balancing job actually measure?
An air balancing job measures total blower airflow (the airflow per ton of cooling check), the static pressure the blower works against, and airflow at each register and return grille, then records each room against its design airflow.
- Total fan airflow. Item 3.8 of the ENERGY STAR commissioning checklist requires it within 15 percent of design. Balancing a system short of air only shares out a shortage.
- Static pressure. Test hole readings show whether the ducts are too restrictive for the blower.

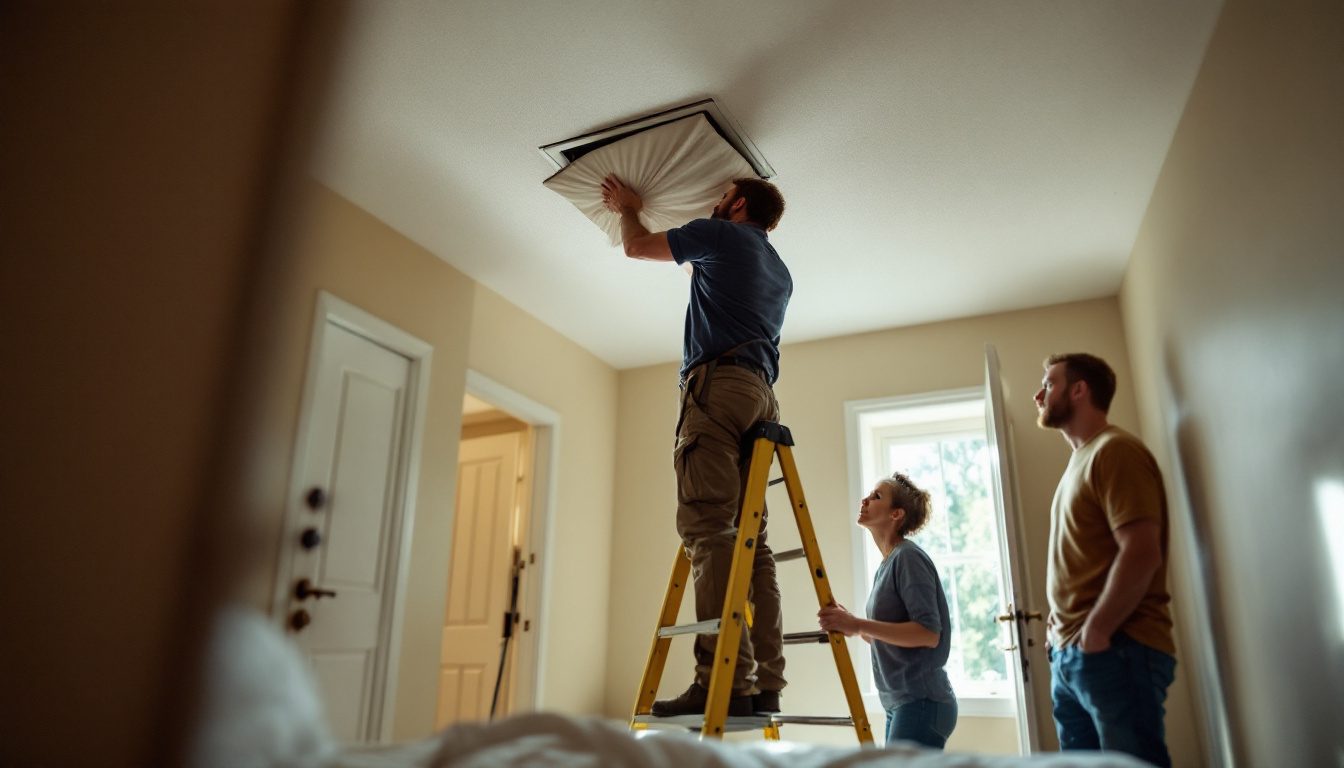

- Room airflow. A flow hood held over each register reads cfm directly. Item 4.1 asks for measurement under the ANSI/ACCA 5 QI-2015 protocol.
The pass mark, item 4.2, is each room within the greater of 20 percent or 25 cfm of design. For a bedroom designed for 80 cfm, 20 percent is only 16 cfm, so the 25 cfm floor applies and 55 to 105 cfm passes.
Uneven room temperatures: is it a balancing problem or something else?
Uneven room temperatures are a balancing problem only when the ducts are tight, correctly sized and moving enough total air. ENERGY STAR lists rooms “difficult to heat and cool” as a sign of poor ducts, and in DOE’s 2018 review most studies found 90 to 100% of tested systems needed duct sealing or repair.
| Likely cause | What you notice | How it is confirmed | Usual fix |
|---|---|---|---|
| Dampers out of adjustment | Strong and weak registers on one floor | Flow hood readings against design | Set trunk or branch dampers |
| Leaky or disconnected ducts | Weak registers at the end of attic runs; high bills | Duct leakage test | Seal with mastic, reconnect |
| Undersized or overlong branch | Stays weak after other rooms are throttled | Static pressure, Manual D review | Larger or added duct run |
| No return path from a closed room | Fine with the door open, off with it shut | Pressure across the closed door | Transfer grille or return duct |
| Low total airflow | Every room weak; coil may ice | Total fan airflow, filter | Filter, blower setting |
| One thermostat, two floors | Upstairs hot in summer | Temperature log per floor | Seasonal dampers or zoning |
| Envelope load | Room drifts only at peak weather | Blower door energy audit | Insulation, air sealing |
Leaky ducts call for sealing or replacing the runs, not adjusting them. Where two floors fight one thermostat all year, zoning with separate thermostats is the permanent answer manual dampers only approximate.
Rooms that drift only on the hottest and coldest days point to the building shell, which a blower door energy audit will show.
How to balance airflow in a house: the owner method
To balance airflow in a house without instruments, log room temperatures, then make small damper changes one at a time. It is coarse tuning for small gaps on a healthy system with a clean filter the blower can push through (see why the highest MERV is not always best).
- Fix the basics. Fit a clean filter, open every register and clear furniture off grilles.
- Log temperatures for two days. Read a thermometer in each room at the same morning and afternoon times, thermostat fixed.

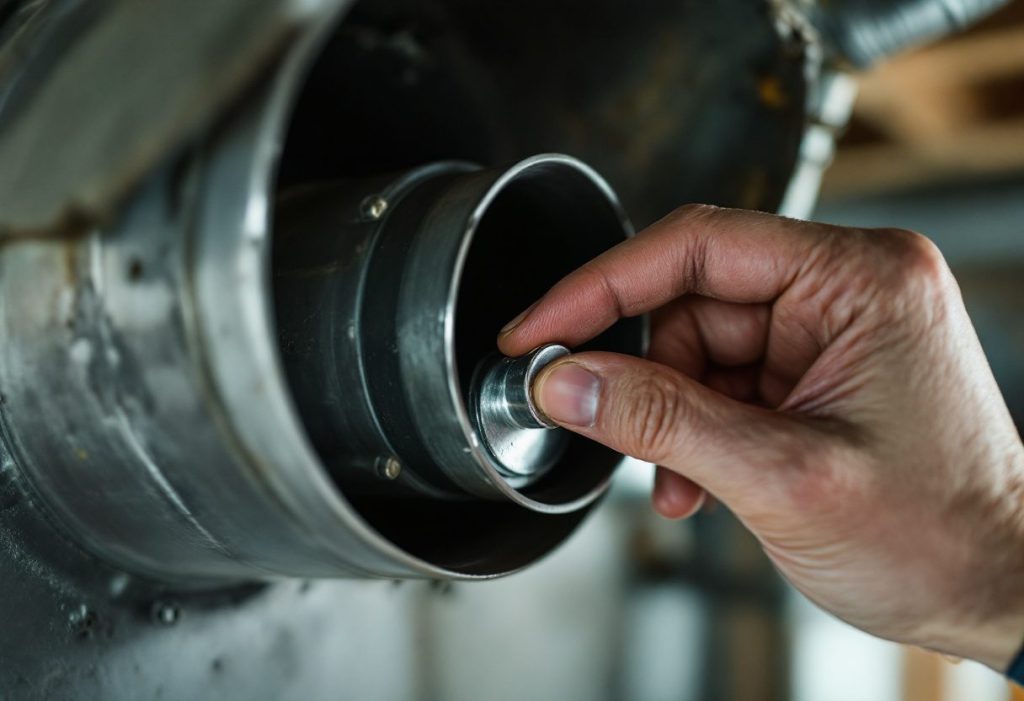

- Find the balancing dampers. Look for small levers on branch ducts near the main trunk in the basement, attic or crawl space.
- Mark every damper. A paint pen line records the starting point.
- Throttle the rooms that overshoot by a small amount. Leave lagging rooms fully open.
- Change one damper, then wait 24 hours and log again before the next move.
- Record a summer and a winter setting. DOE’s Building America Solution Center notes trunk dampers allow seasonal adjustment: less air upstairs when heating, more when cooling.
Stop and call a technician if registers whistle, the system short cycles or the indoor coil frosts: signs of too little total airflow, the fault behind an air conditioner freezing up. If the thermostat sits in the one comfortable room, where the thermostat is mounted matters as much as the dampers.
How do professionals do HVAC air balancing?
Professional HVAC air balancing works from numbers: design airflow per room, measured airflow per register, and a written report showing every room inside tolerance.
The checklist footnotes add two rules: limit flow with dampers or proper duct sizing “instead of looped or coiled ductwork,” and put dampers at the trunk to keep noise down. If a contractor proposes a bigger unit to fix a hot room, ask for the room loads first, since sizing from a Manual J calculation sets each room’s airflow.
Register selection falls under ACCA’s Manual T, on selecting, sizing and locating supply outlets and return inlets. For commercial TAB, look for AABC, NEBB or TABB certification. On a house, ask whether the technician owns a flow hood and will hand over a room by room report; our guide to vetting an HVAC contractor covers the rest.
Should you close vents instead of air balancing?
No. Closing supply registers is not air balancing. A 2003 Lawrence Berkeley National Laboratory study by Iain Walker found register closing led to increased energy use for a typical California house, because added duct leakage offset the smaller conditioned area.
Correction: the closed vent myth
LBNL warns that closing more than 60 percent of registers restricts flow so much that furnaces may run on the high-limit switch and cooling coils may freeze. DOE’s Solution Center adds that register dampers can cause whistling and too many closed dampers can ice up the evaporator.
If you must shut a spare room’s register, LBNL found the penalty smallest when registers furthest from the air handler are closed first. Real balancing uses branch or trunk dampers, which the Solution Center says fine-tune airflow but are “not intended to correct significant duct sizing errors.”
Why do rooms with closed doors stay hot or cold?
A shut room with no return gets pressurized, so less supply air comes in. The fix is a return path, and the ENERGY STAR Rater Field Checklist sets the target at 3 Pa or less between a closed bedroom and the main house.
Item 6.2 is tested at the highest design fan speed with bedroom doors closed; bedrooms designed for 150 cfm or more may meet 5 Pa instead. The Building America Solution Center says return air needs a “clear path” back from every room with a supply outlet, bathrooms and kitchens excepted.

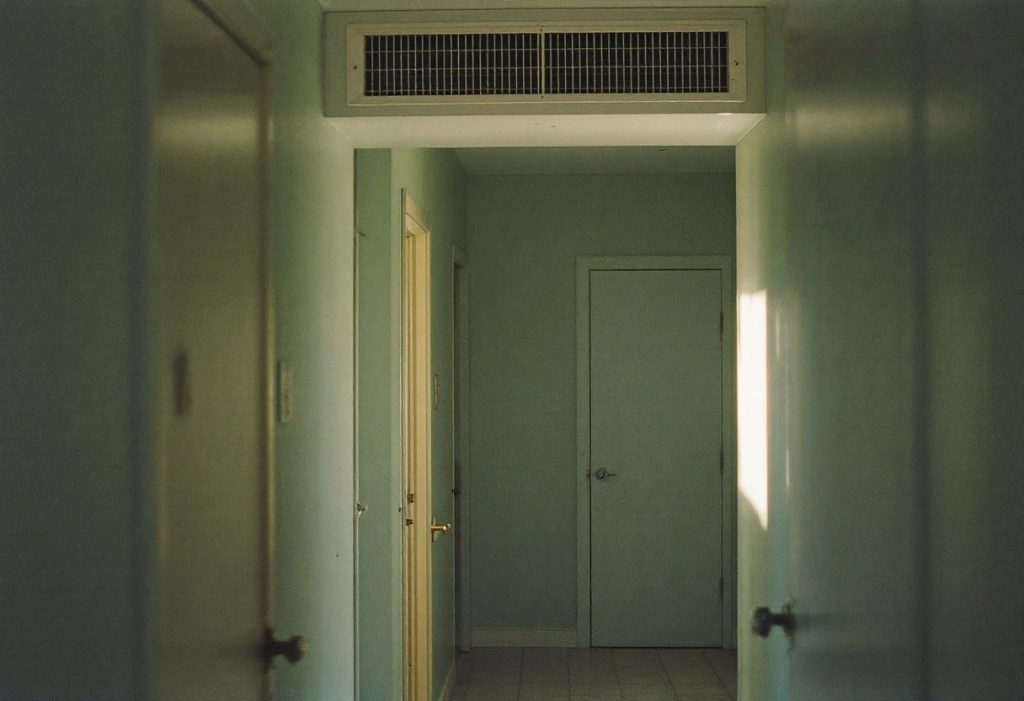

- Transfer grille or jump duct: the rule of thumb is at least 1 square inch of free area per cfm, so a 100 cfm bedroom needs about 100 square inches.
- Dedicated return duct: most reliable, hardest to add after drywall.
- Door undercut: the undercut guide says it usually needs 1.5 inches or more and is not a recommended approach.
Our explainer on how supply and return vents work together shows why a starved return undoes any damper setting. When building or remodeling, put returns in the ductwork installation plan from day one.
How we researched this
Research date: October 8, 2026. We consulted 15 sources and cite 10: ENERGY STAR’s Duct Sealing page and Rev. 14 checklists, three DOE Building America Solution Center guides, LBNL (2003), DOE’s 2018 installation review, UC Davis, and ACCA (Tier 2).
Excluded: contractor blogs, whose upstairs temperature figures we could not trace, and installed prices, which no federal series publishes. No Reddit material was used.
Frequently asked questions
How much does HVAC air balancing cost?
No federal or national laboratory source publishes residential air balancing prices, so we quote none. Ask for a written quote that names the instrument, usually a flow hood, and promises a room by room report against the ENERGY STAR tolerance of 20 percent or 25 cfm.
Can I balance my HVAC system myself?
Partly. An owner can log room temperatures and adjust branch dampers one at a time, a day apart, but cannot measure cfm or static pressure without instruments. Stop if registers whistle or the coil frosts: DOE’s Building America Solution Center warns too many closed dampers can ice up the evaporator.
Why is my upstairs hotter than downstairs?
Causes vary: attic heat, a thermostat on the lower floor and duct layout are the usual suspects. Where a home has a trunk damper per floor, DOE’s Building America Solution Center notes it allows seasonal adjustment: less air upstairs in the heating season and more in the cooling season. Persistent gaps across seasons are a case for zoning.
Should I close vents in unused rooms to save energy?
Generally no. A 2003 Lawrence Berkeley National Laboratory study found register closing led to increased energy use for a typical California house, as added duct leakage offset the smaller conditioned area. Closing more than 60 percent of registers risks frozen coils and furnace high-limit trips.
Is air balancing required by code?
Not under ENERGY STAR. Its 2025 National HVAC Commissioning Checklist calls air balancing of supply registers and return grilles highly recommended but not required for certification. Whether a balancing report is required on your job depends on local code, the permit and the contract specification, so ask before work starts.
Will air balancing fix leaky or undersized ducts?
No. DOE’s Building America Solution Center says balancing dampers fine-tune airflow but cannot correct significant duct sizing errors. ENERGY STAR estimates a typical house loses 20 to 30 percent of duct air to leaks, air that never reaches a register. Seal or resize first, then balance.
Sources
- U.S. EPA, ENERGY STAR. “Duct Sealing.” https://www.energystar.gov/saveathome/heating-cooling/duct-sealing. Accessed October 2026.
- U.S. EPA, ENERGY STAR. “National HVAC Commissioning Checklist (Rev. 14).” https://www.energystar.gov/sites/default/files/2025-01/National%20HVAC%20Commissioning%20Checklist_Rev%2014.pdf. Accessed October 2026.
- U.S. EPA, ENERGY STAR. “National Rater Field Checklist (Rev. 14).” https://www.energystar.gov/sites/default/files/2025-04/National%20Rater%20Field%20Checklist_Rev%2014.pdf. Accessed October 2026.
- DOE Building America Solution Center. “Pressure Balancing Supply and Return Ducts in Existing Homes.” https://basc.pnnl.gov/information/pressure-balancing-supply-and-return-ducts-existing-homes. Accessed October 2026.
- DOE Building America Solution Center. “Transfer Grilles.” https://basc.pnnl.gov/resource-guides/transfer-grilles. Accessed October 2026.
- DOE Building America Solution Center. “Undercut Doors.” https://basc.pnnl.gov/resource-guides/undercut-doors. Accessed October 2026.
- Lawrence Berkeley National Laboratory, I. Walker. “Register Closing Effects on Forced Air Heating System Performance, LBNL-54005 (2003).” https://eta-publications.lbl.gov/bibcite/reference/31341. Accessed October 2026.
- U.S. DOE Building Technologies Office. “Residential HVAC Installation Practices: A Review of Research Findings (June 2018).” https://www.osti.gov/biblio/1470985. Accessed October 2026.
- UC Davis Western Cooling Efficiency Center. “Testing, Adjusting and Balancing HVAC Systems: An Overview of Certification Agencies.” https://wcec.ucdavis.edu/testing-adjusting-and-balancing-hvac-systems-an-overview-of-certification-agencies/. Accessed October 2026.
- ACCA. “Manual T: Air Distribution Basics.” https://www.acca.org/standards/technical-manuals/manual-t. Accessed October 2026.
