What does an aquastat do? An aquastat is a boiler’s water temperature control: it stops the burner at a high limit, can hold a low limit for a tankless coil, and switches the circulator. Settings come from the boiler maker’s manual.
Key Takeaways
- The Honeywell/Resideo L8148 relay has a 180°F to 240°F standard high limit scale and a nonadjustable differential (Resideo 60-2278).
- Resideo’s electronic L7224 and L7248 replace the L8124A and L8148A; the cold start L7248 has a 15 °F high limit differential preset (form 68-0281).
- Hydrolevel says the low limit “should only be used for boilers with tankless coils” and ships it factory set to OFF (3200-Plus manual).
- Residential hot water boilers made on or after September 1, 2012 need automatic water temperature adjustment, except boilers with a tankless coil (10 CFR 430.32).
- Washington requires two high temperature limits on automatic hot water boilers, one manual reset above 400,000 Btu/hr (WAC 296-104-302).
What does an aquastat do on a boiler?
An aquastat senses boiler water temperature and switches the burner and circulator to keep it inside set limits. On a Resideo L8148, a 24 Vac thermostat call runs the burner and circulator, and the high limit shuts off only the burner when the water exceeds its setting (Resideo).
Aquastat is a registered Resideo mark, but the word covers any maker’s boiler water control, common on oil-fired boilers. In a hot water heating loop, it sets how hot the water gets.
Many units are “aquastat relays”: a high limit, switching relay and transformer in one box. Resideo says that transformer powers the low voltage control circuit, so a dead control can look like a dead thermostat.

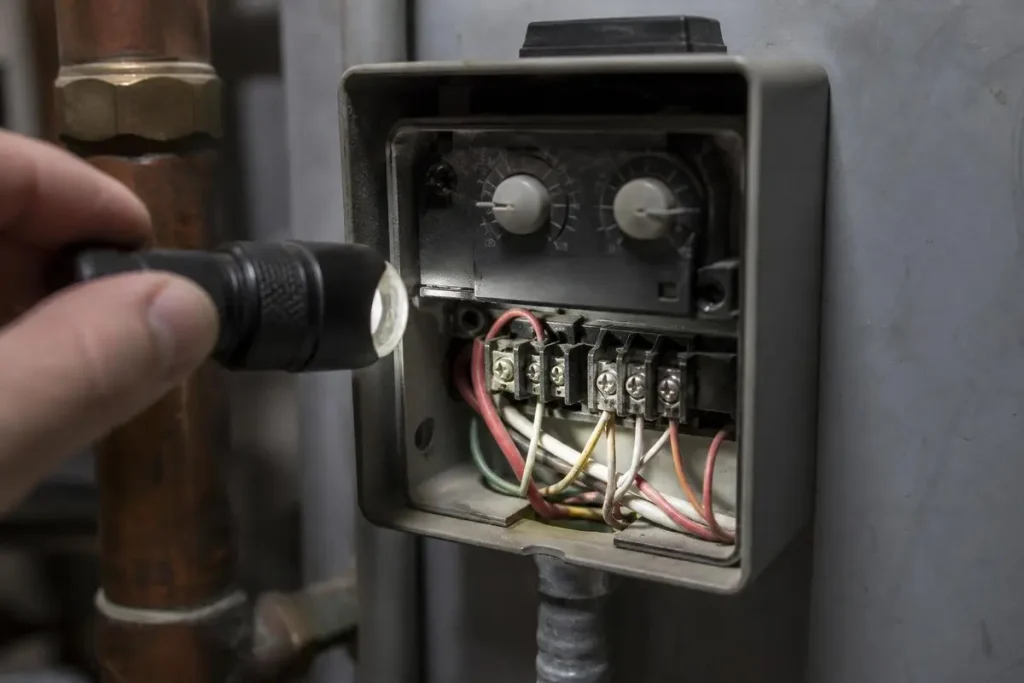

How do aquastat high limit, low limit and differential settings work?
The high limit stops the burner at a setpoint, the differential sets how far the water cools before it refires, and the low limit keeps the boiler warm between calls. In Beckett’s example, a 200°F high limit with a 20°F differential stops the burner at 200°F and restarts it at 180°F while the circulator keeps running (Beckett AquaSmart manual).
- High limit: an operating limit, not the final safety; the relief valve and, on larger boilers, a second manual reset limit sit above it.
- Differential: narrow means more burner starts; wide means longer, cooler swings.
- Low limit: fires with no thermostat call to keep water hot for a tankless coil.
- Circulator control: Beckett notes that turning the low limit off lets the thermostat run the circulator directly.
What do the L8148, L7248, AquaSmart and HydroStat manuals specify?
Ranges differ by model, so a replacement must match the old control’s function. Beckett’s cross-reference warns that limit and differential ranges on older controls “are not equivalent” (Beckett).
| Control (maker document) | Type | High limit range | Differential | Low limit |
|---|---|---|---|---|
| Resideo L8148A,E,J (60-2278) | Electromechanical relay | 180°F to 240°F (optional 140°F to 240°F) | Nonadjustable | None built in; terminals for a remote low limit |
| Resideo L4006A (60-2104) | High or low limit | 100°F to 240°F (or 40°F to 180°F) | 5°F to 30°F adjustable, or fixed | Can serve as one |
| Resideo L4006E (60-2104) | Manual reset high limit | 130°F to 290°F | Manual reset | None |
| Resideo L7248 (68-0281) | Electronic, cold start | 130 °F to 240 °F | 15 °F preset | None (external low limit on L7248L) |
| Resideo L7224 (68-0281) | Electronic, warm start | 130 °F to 240 °F | 10 °F preset | 110 °F to 220 °F |
| Beckett AquaSmart 7600 | Electronic, cold start capable | 100 to 220°F | 5 to 45°F | 100 to 205°F or OFF |
| Hydrolevel HydroStat 3200-Plus | Electronic, LWCO on Electro-Well | 100°-220°F | Automatic | Factory OFF; tankless coil only |
The L8148 has no low limit, so a tankless coil boiler needs an added control (Resideo’s diagrams show an L6006) or a different model. Resideo also states that a separate electromechanical high limit is not required with the L7224/L7248 to meet UL 726 for oil-fired boiler assemblies (Resideo 68-0281).
What should boiler aquastat settings be?
The right boiler aquastat settings are the ones in the boiler maker’s manual; no control maker publishes a universal number. Resideo’s L8148 instructions say: “Follow the boiler manufacturer recommendations for proper setting” (Resideo).
The manuals do set guardrails. Beckett says a low limit on a non-condensing boiler, if used, should be 150° F or above to limit flue gas condensation, unless the boiler maker says otherwise. Hydrolevel wants it at least 10° below the high limit. Beckett’s control enforces a gap of the larger differential plus 5°F: a 180°F high limit with a 20°F differential allows no low limit above 155°F.
Do not raise the high limit to cure weak heat without the boiler manual. Resideo says its aquastats are intended only for systems with a pressure relief valve (Resideo 60-2104).
Does a boiler without a tankless coil need a low limit?
Usually not. If hot water comes from an indirect tank on its own zone or a separate heater, Hydrolevel says the low limit “should be turned to OFF (fully counterclockwise) when the boiler does not have a tankless coil” (Hydrolevel).
Correction: “every boiler needs a low limit”
A widely read settings guide says to set the low limit 20°F under the high limit, without asking whether the boiler has a tankless coil. Maker manuals disagree: Beckett’s cross-reference repeats “Set low limit on 7600 to OFF” for many replacements.
Federal rules require automatic water temperature adjustment on all but tankless coil boilers. Under 10 CFR 430.32(e)(2), a single input boiler complies by firing only when residual heat cannot meet the load. The L7248’s thermal purge “may delay the burner operation while the residual heat is circulated out of the boiler,” per Resideo.
Immersion well or strap-on: where does the sensor go?

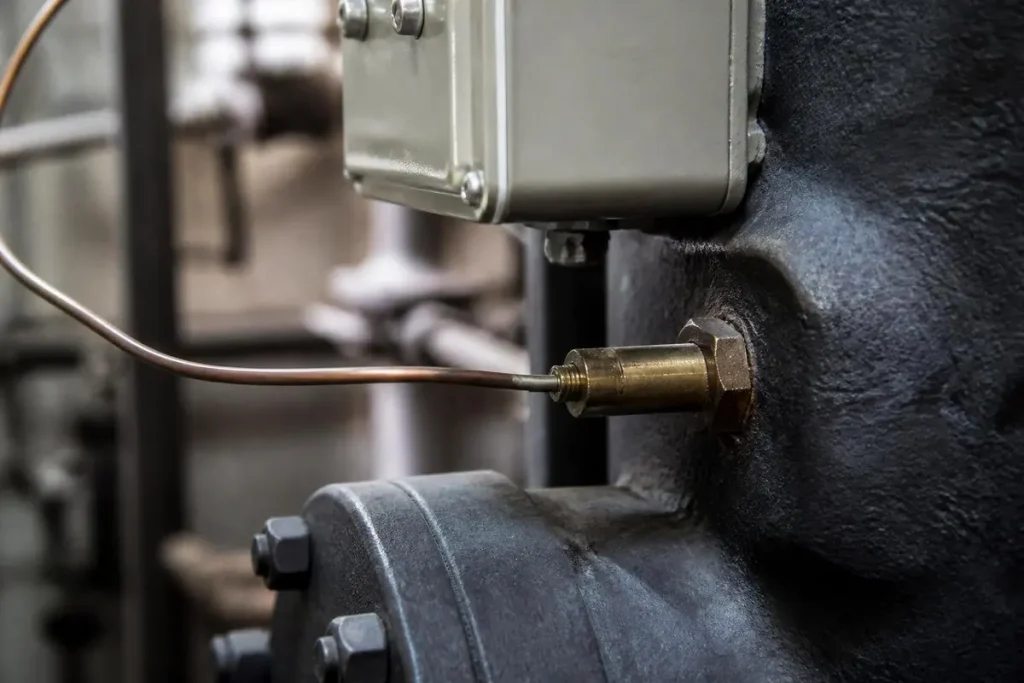

Immersion models read water through a well, a closed sleeve threaded into a boiler tapping that holds the sensing bulb. Strap-on models such as the L6006C clamp to a pipe, with a 65°F to 200°F range. Resideo warns: “Do not replace immersion-type Aquastat Controller with strap-on Aquastat Controller” (Resideo 60-2104).
Resideo says the bulb must bottom in the well, with heat-conductive compound if loose, and never sit close to a hot or cold water inlet or a steam coil. The L8148 well is rated to 255 psi.
What are bad aquastat symptoms, and what should you check?
Bad aquastat symptoms are no heat with the thermostat calling, overheating or relief valve discharge, short cycling, and lukewarm tankless hot water. Other parts cause these too, so work in order; leave anything past the owner checks for a boiler that won’t run to a licensed technician.
- Read the display. On an L7224 or L7248, Err1 is a sensor fault, Err4 a burner output (B1) fault and Err5 low line voltage, per Resideo’s code table.
- Allow for thermal purge. A cold start control may run the pump with the burner held off while it uses stored heat. That is normal.
- Check control power. The relay’s transformer feeds the thermostat circuit; a failed 24V transformer kills every heat call it powers.
- Check the pump side. If the burner fires but rooms stay cold, check the circulator and any zone valve first.
- Treat overheating as urgent. Water past the high limit or a discharging relief valve means shut down and call for service; see normal boiler pressure for gauge readings.
- Respect a manual reset trip. An L4006E locks out at setpoint and resets only after the water drops 20°F below it. Repeat trips mean a fault upstream.
- Check the sensor seat. A bulb that does not bottom in its well, or a well near an inlet, misreads water temperature.
What does code require for a boiler high limit control?
In many jurisdictions, an automatically fired hot water boiler needs an operating control plus a separate high temperature limit, manual reset on larger boilers. Details come from ASME CSD-1 as adopted or state boiler rules, and home boiler coverage varies by state.
| Jurisdiction (rule) | What it requires |
|---|---|
| California (2025 CMC 1003.2.1) | Controls per ASME CSD-1 or Table 1003.2.1; two high temperature limit controls, manual reset not required on an approved package boiler up to 400,000 Btu/h |
| Washington (WAC 296-104-302) | Two high temperature limit controls, the highest with manual reset above 400,000 Btu/hr, plus a manual reset low water fuel cutoff |
| North Carolina (13 NCAC 13 .0406) | An operating control and a high temperature limit, each with its own sensing element; automatic or remote electronic resets prohibited |
Sources: California Mechanical Code text, WAC 296-104-302 and 13 NCAC 13 .0406. Washington also requires a manual reset low water cutoff against dry firing; the HydroStat gives that protection only on an Electro-Well.
How we researched this
Research dates: October 15 to 18, 2026. We consulted 15 sources and cite 9: five maker documents, the eCFR text of 10 CFR 430.32 and three state code texts, each re-checked against the original. Every range is a maker specification, not a tested result.
Excluded: setting numbers from top-ranking explainers (none cite a manual), Beckett’s “up to 20%” HeatManager savings claim (marketing), HydroStat factory and low limit figures (its manual conflicts with itself), and prices (no federal series). Reddit was skipped because boiler limits are a safety topic.
Frequently asked questions
What temperature should an aquastat be set at?
Use the boiler maker’s numbers; Resideo’s L8148 instructions say the right setting differs by system. As a range check, the L8148 standard high limit scale runs 180°F to 240°F, and Beckett says a low limit, if used on a non-condensing boiler, should be 150°F or above.
What happens when an aquastat goes bad?
Typical results are no heat, a burner that will not stop at the high limit, or short cycling. Electronic Resideo models show faults on the display, such as Err1 for a sensor fault. Overheating with relief valve discharge means shut the boiler down and call for service.
How much does an aquastat cost?
We do not publish a price because no federal or national lab source tracks aquastat or installation costs. Matching function matters more: Beckett warns that limit and differential ranges on some older controls are not equivalent to its AquaSmart, so the right replacement may not be the cheapest.
Can I replace an immersion aquastat with a strap-on one?
Resideo says no: “Do not replace immersion-type Aquastat Controller with strap-on Aquastat Controller.” Strap-on models such as the L6006C sense pipe surface temperature and have a 65°F to 200°F range, so they do not read boiler water the way a sensor in an immersion well does.
Why does my boiler run the pump before the burner fires?
That is likely thermal purge on a cold start control. Resideo’s L7248 holds the burner off while the circulator uses residual heat, matching the federal rule for single input boilers. Its frost protection still forces the burner on at a fixed 40 °F.
Is an aquastat high limit a safety control?
It is an operating limit that also caps temperature, but codes often want more. North Carolina requires a separate high temperature limit with its own sensing element. California requires two high temperature limit controls on automatic hot water boilers, waiving manual reset only on approved package boilers up to 400,000 Btu/h.
Sources
- Resideo. “L8148A,E,J Aquastat Relays, Product Data, 60-2278-10.” https://res.cloudinary.com/dzhpkjoqj/Resideo/60-2278.pdf. Accessed October 2026.
- Resideo. “L4006,7,8; L6006,7,8 Aquastat Controllers, Product Data, 60-2104-11.” https://res.cloudinary.com/dzhpkjoqj/Resideo/60-2104.pdf. Accessed October 2026.
- Resideo. “L7224A,C; L7248A,C,L Oil and Electric Boiler Electronic Aquastat Controllers, 68-0281-24.” https://res.cloudinary.com/dzhpkjoqj/Resideo/68-0281.pdf. Accessed October 2026.
- Beckett. “AquaSmart Boiler Control Manual, Form 61738.” https://www.beckettcorp.com/wp-content/uploads/2022/05/AquaSmart-7600-Burner-Control-Manual.pdf. Accessed October 2026.
- Hydrolevel. “Model 3200-Plus Installation Instructions and Operating Manual.” https://pexuniverse.com/uploads/literature/hl-hs-3200-plus-ins.pdf. Accessed October 2026.
- eCFR. “10 CFR 430.32, Energy and water conservation standards.” https://www.ecfr.gov/current/title-10/chapter-II/subchapter-D/part-430/subpart-C/section-430.32. Accessed October 2026.
- Washington State. “WAC 296-104-302, control and limit devices.” https://www.law.cornell.edu/regulations/washington/WAC-296-104-302. Accessed October 2026.
- North Carolina. “13 NCAC 13 .0406, High pressure or temperature limit control.” https://www.law.cornell.edu/regulations/north-carolina/13-N-C-Admin-Code-13-0406. Accessed October 2026.
- California Building Standards Commission. “2025 California Mechanical Code, Section 1003.2.1 and Table 1003.2.1” (code text as hosted by GoCodebook). https://gocodebook.com/us/california/california-mechanical-code/boilers-and-pressure-vessels/safety-controls-gauges-and-expansion/controls-and-limit-devices-for-automatic-boilers. Accessed October 2026.
